Overview.

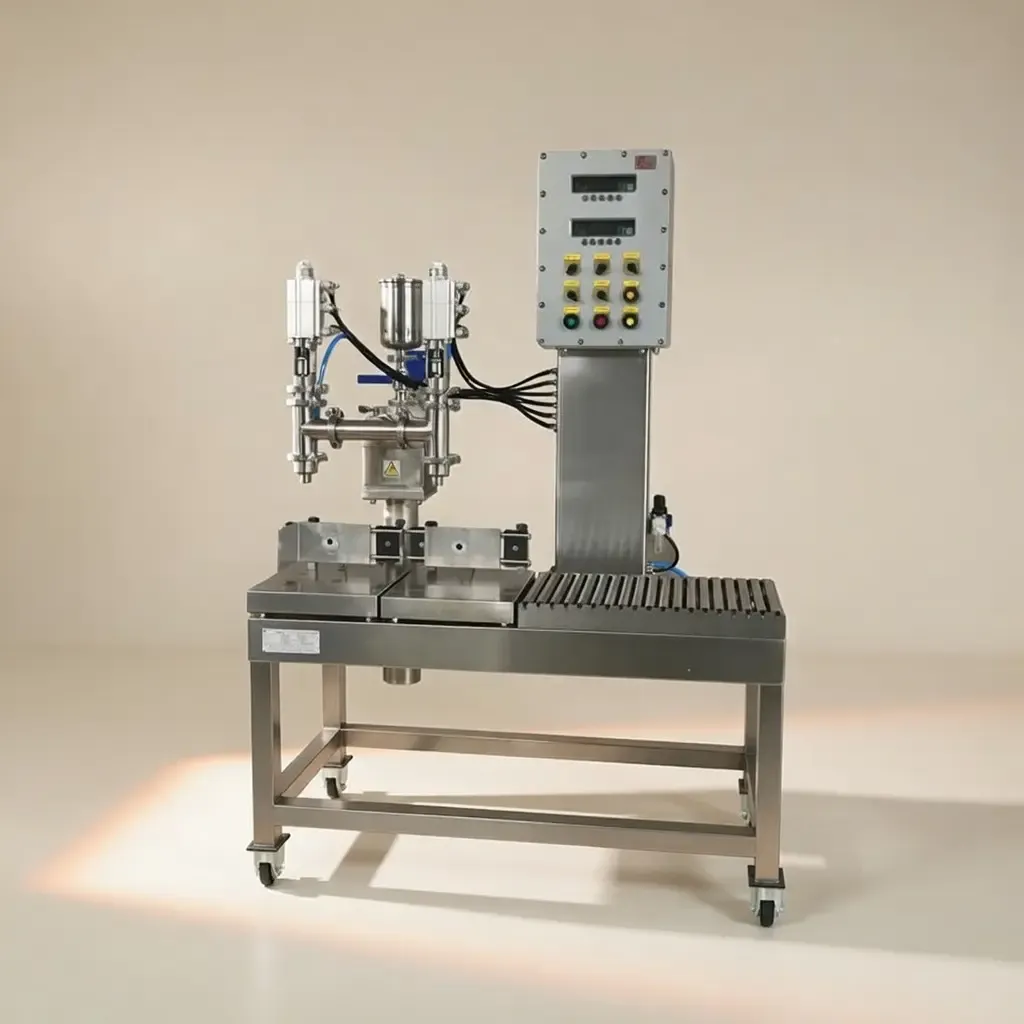

The Semi-Automatic Liquid Weigh Filler is a precision filling solution designed for applications where accuracy, repeatability, and product accountability are critical. Instead of relying on timed or volumetric dosing, this system fills containers based on real-time weight measurement, ensuring consistent output regardless of liquid density or viscosity variations. Ideal for small to medium production environments, the machine combines digital weighing technology with semi-automatic operator control to balance flexibility and efficiency. Its stainless-steel construction ensures hygiene and durability, while programmable filling parameters allow quick adaptation to different container sizes and product types. Suitable for industries ranging from food processing to specialty chemicals, this weigh-based filler minimizes product giveaway, reduces waste, and delivers dependable filling performance with minimal training requirements.
Features.
Integrated load cells monitor fill weight in real time, automatically stopping the flow once the target weight is achieved for maximum accuracy.
User-set fill parameters allow quick switching between recipes, container sizes, and product batches without recalibration.
Because filling is weight-based, variations in liquid density or temperature do not affect dosing precision.
Foot pedal or trigger activation enables smooth workflow while keeping the operator in control of positioning and timing.
Media & Walkthrough.
No media content available. Please contact us for more information.
Technical Snapshot.
Specification | Typical Range / Value |
|---|---|
Filling Method | Digital weigh-based filling |
Filling Range | 50 g – 30 kg (model dependent) |
Filling Accuracy | ±0.1% to ±0.3% |
Load Cell Capacity | Industrial precision load cell |
Filling Speed | 6–20 containers/min (operator dependent) |
Control System | Digital programmable controller |
Material of Construction |
Additional Context.
📦 Suitable Products
This weigh-based filler is ideal for:
• Edible oils & specialty oils
• Syrups & liquid concentrates
• Paints, coatings & resins
• Cleaning chemicals & detergents
• Pharmaceutical liquids
• Adhesives & industrial fluids
• Cosmetic liquids
• Agrochemicals
Benefits
Accuracy that protects margins — weigh-based filling eliminates overfill losses.
Versatile product handling — ideal for variable density liquids.
Low operator learning curve — fast onboarding for production staff.
Scalable production — perfect for pilot batches or growing operations.
FAQs.
Weigh filling compensates for density changes, delivering more consistent accuracy.
Yes — flow settings can be tuned for a wide viscosity range.
Minimal — industrial load cells maintain stability over long production cycles.
